The features of a function graph can show us many aspects of the relationship represented by the function. Let's take a look at the more popular graphical features.
Intercepts are the locations (points) where the graph crosses (or touches) either the xaxis or yaxis.
To find the yintercept, look where x = 0.
Remember: the
yintercept will have an xcoordinate of 0.
y = 2x + 2
y = 2(0) + 2; y = 2 yintercept: (0,2)
(You can also read the yintercept, b, from the function equation
if it is
in y = mx + b form.)
To find the xintercept, look where y = 0.
Remember: the xintercept will have a ycoordinate of 0.
y = 2x + 2
0 = 2x + 2; 2x = 2; x = 1 xintercept: (1,0)


When looking for sections of a graph that are increasing or decreasing, be sure to look at (or "read") the graph from left to right.
Increasing: A function is increasing, if as x increases (reading from left to right), y also increases.
In plain English, as you look at the graph, from left to right, the graph goes uphill. The graph has a positive slope.

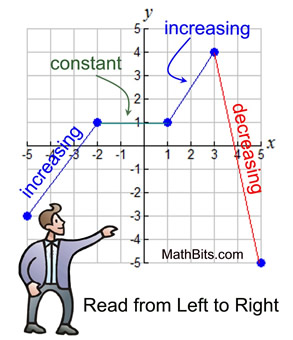

Example: The function (graph) at the right is increasing from the point (5,3) to the point (2,1), which is described as increasing when 5 < x < 2 .
It also increases from the point (1,1) to the point (3,4), described as increasing when 1 < x < 3.


Decreasing: A function is decreasing, if as x increases (reading from left to right), y decreases.
In plain English, as you look at the graph, from left to right, the graph goes downhill. The graph has a negative slope.
Example: The graph shown above is decreasing from the point (3,4) to the point (5,5), described as decreasing when 3 < x < 5.
Constant: A function is constant, if as x increases (reading from left to right), y stays the same.
In plain English, as you look at the graph, from left to right, the graph goes flat (horizontal). The graph has a slope of zero.
Example: The graph shown above is constant from the point (2,1) to the point (1,1), described as constant when 2 < x < 1. The yvalues of all points in this interval are "one".

Intervals of increasing, decreasing or constant ALWAYS pertain to xvalues.
Do NOT read numbers off the yaxis.
Stay on the xaxis for these intervals!

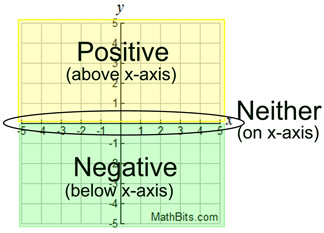

yvalues positive
or
yvalues negative

Secret to Finding the Intervals!
The secret to correctly stating the intervals where a function is positive or negative is to remember that the intervals ALWAYS pertain to the locations of the xvalues. Think of reading the graph from left to right along the xaxis.
Do NOT read numbers off the yaxis for the intervals. Stay on the xaxis!

When you are working with word problems associated with functions, you may be asked to find the largest (or smallest) yvalue from the graph. These values are referred to as the maximum (or minimum) values of the function.
Linear Graphs
A straight line is the easiest graph for determining the maximum and minimum values.
If a question is asking for the largest (or maximum) value obtained by the graph, it is looking for the largest yvalue.
For a graph, such as the one at the right, it would be stated that what you are seeing is the entire graph. You do not have to worry that there are more points that you are not seeing.

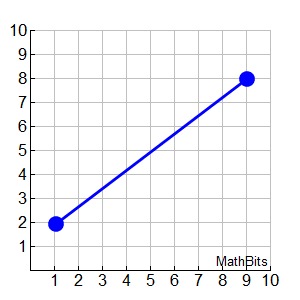

For the line at the right, it maximum value is 8 and its minimum value is 2.


NonLinear Graphs
For nonlinear graphs, you may have to look for "turning points" in the graph.
A "turning point" on a graph is a point at which the graph changes from increasing to decreasing (it looks like a "hill"), or from decreasing to increasing (it looks like a "valley").

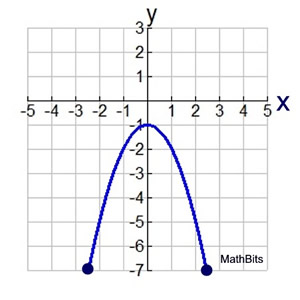

For the graph at the right (which is the entire graph), the turning point is at the top of the "hill" at the point (0,1).
The maximum value is 1 and the minimum value is 7.


Split Graphs
Split graphs may be comprised of linear portions and nonlinear portions.
Look carefully at these graphs to see where the largest and smallest yvalues fall.

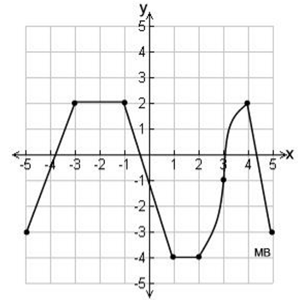

For this graph (which is the entire graph), there is more than one point that represents the maximum value, all of which have a value of 2.
There is also more than one point that represents the minimum value, all of which have a value of 4.
