def
A cone is a three-dimensional closed figure that has a circular base connected to a vertex (or apex) point outside the plane of the base.
conecrosssection
Similar Cross Sections
(parallel to base)
The one and only base of the cone is a circle (or other curved figure).
Cones are NOT called polyhedra since their bases are curved (not polygons).
The vertex of a cone (the point, the apex) is not in the same plane as the base.

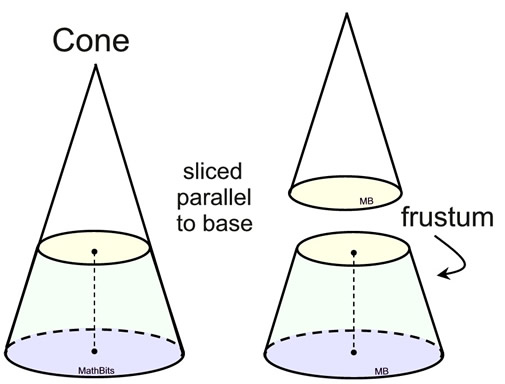

All cross sections of a cone parallel to the base will be similar to the base.
While cylinders have several characterisitcs in common with pyramids, they are not pyramids.
conerightside
Right Circular Cone

conestwo

If the segments joining the center of the circle base and vertex point is perpendicular to the base, the cone is a right circular cone. If the segment joining the center of the circle base and vertex point in not perpendicular to the base, the cone is called an oblique circular cone.

h = height; r = radius; s = slant height

dashdivider

Volume of a Cone:
The volume of a cone is one-third the area of its base times its height.         cylinderformula
The formula for the volume of a cone is very similar to the formula for the volume of a pyramid. The volume of a cone is one-third the product of the base area, πr2, times the height of the cone.    Note: A cone is not a pyramid since its base is circular (not a polygon).
Since the base of a cone is a circle, you can see how replacing the B value in the volume of the pyramid with the area of a circle gives us the volume formula for a cone.
conepryfor
coneformulaS
V = volume in cubic units
r =
radius of base in units
h
= height in units
cylinderformula

dashdivider


Justification of formula by "pour and measure":
(For this discussion, our cone will be a right circular cone.)

We can conduct an experiment to demonstrate that the volume of a cone is actually equal to one-third the volume of a cylinder with the same base and height. We will fill a right circular cone with water. When the water is poured into a cylinder with the same base and height as the cone, the water fills one-third of the cylinder.
The base of the cone is a circle, with an area π r2.
The base of the cylinder is also a circle with an area of π r2.
The height of the cone and the cylinder is h.
The volume of the cylinder is V = π r2 h.
Since the water from the cone fills one-third of the cylinder, the volume of the cone is one-third the volume of the cylinder:
conePour

By measurement, it can be concluded that the height (depth) of the water in the cylinder is one-third the height of the cylinder. Since the formula for the volume of the cylinder is V = π r2h, it follows that the volume of the cone can be represented by volumeconed.

dashdivider


Justification of formula by "comparison to pyramid":
To use Cavalieri's Principle, we must have solids whose bases have equal areas and whose cross sections parallel to the bases have equal areas. Can we find a way to have bases of equal area on a right circular cone and a regular square pyramid?

The area of the circular base of the cone is πr2.
The area of the base of the square pyramid is s2.
If these two areas are equal, we must have πr2 = s2.
Solving for s, tells us that the side of the square base must have a length of
rradpi.
Now, the circular base and the square base have the same area. If we can establish that cross sections parallel to the bases yield the same areas, we will be able to employ Cavalieri.

conepyramiddiag

Let's say that our cross section is drawn k units down from the top of both solids. By similar triangles, we know the proportion x / r = k / h, and x = (r)•(k / h).
In the cone, with a radius x = (r)•(k / h), the area of the circular cross section is
πx2 = π[(r)•(k / h)]2.


In the pyramid, we know the proportion y /rradpi = k / h, which gives length y = rradpi• (k / h).
The area of the cross section in the pyramid = [rradpi• (k / h) ]2.

Now, π[(r)•(k / h)]2 = πr2 • (k / h)2.
And, [rradpi• (k / h) ]2 = πr2 • (k / h)2.
Since the cross sectional areas are also equal, we can employ Cavalieri's principle and state that the volume of the cone equals the volume of the pyramid. We know that the volume of the pyramid is volumepyramidcone. Since the height is the same in both solids, B must equal πr2 for the cone, making the formula for the volume of a cone conepyramidformula.

dashdivider

Surface Area of a Cone:
statement
The surface area of a closed right cone is a combination of the lateral area and the area of the base.

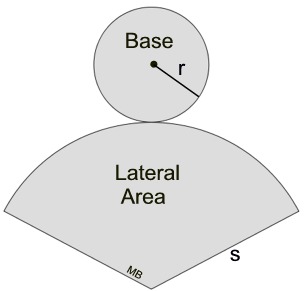

When cut along the slant side and laid flat, the surface of a cone becomes one circular base and the sector of a circle (lateral surface), as seen in the net at the right.

The length of the arc in the sector is the same as the circumference of the small circular base.

Remember that the area of a sector is a portion of the area of a complete circle. With this in mind, we can use proportions to find the area of a sector.



conenet
conearea1
These calculations refer to the "sector" section of the cone's net.
conearea2
The arc length of the sector equals the circumference of the base circle.
conearea3
The radius of the base circle is r, while the radius of the sector is s.

The base area = area of a circle = πr2.
The lateral area (sector) = sπr.

Note: The area of the sector is half the product of the slant height and the circumference of the base.        sπr = ½ s • 2πr

Total Surface Area of a Closed Cone
SA
= sπr + πr2

SA = surface area
r
= radius of the base
s = slant height of the cone
dashdivider

In a right circular cone, the slant height, s, can be found using the Pythagorean Theorem.

Create a right triangle using the height, the radius and the slant height.

s2 = r2 + h2
slantheight

slantconeheight
dashdivider

When asked to find the surface area of a cone, be sure to read the question carefully.
Will the surface area
include the base?

coneb1
SA = sπr + πr2
Will the surface area
NOT include the base?

coneb2
SA
= sπrh

dashdivider

See applications of cones under Modeling.
