Constructing Functions from a TABLE:

Constructing functions from a table of values may be a very simple process, or it may be a more challenging process, depending upon the information provided in the table. Before we start, we should check to see if the table CAN BE represented by an exponential function. Remember that exponential functions grow by common factors over equal intervals. Are the xvalues changing by the same increment, and do successive yvalues have the same ratio or common factor? (You may see the term "multiplier" used to represent "common factor".)
Example 1:

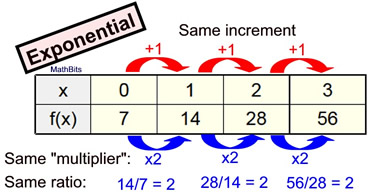

The table at the right shows values from an exponential function of the form
f (x) = ab^{x}. Find the values of a and b, and express an equation that may be represented by this table.
This example would be labeled EASY since the yintercept is given at (0,7) and the ordered pairs increase by the same x increment of 1.


Solution:
In the last lesson, we saw that the yintercept of f (x) = ab^{x} is (0, a). So, in this example, we can see that the yintercept is at (0,7) making a = 7. ANS: a = 7
Since we have already noted that the common factor ("multiplier") is 2 in this table, we know the value for b is 2. ANS: b = 2
Equation: f (x) = 7•(2)^{x}
What happens when the xincrement is NOT +1 ?
Example 2:

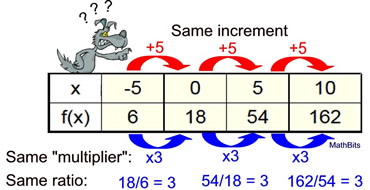

The table at the right shows values from an exponential function.
Find the values of a and b, and express an equation that may be represented by this table.
Notice that the "same increment" is now +5 (instead of +1). This will affect the final answer, making this problem's difficulty level HARD.


Solution:
We will proceed with the assumption that our answer will be of the form f (x) = ab^{x}.
Again, we know that the y intercept of f (x) = ab^{x} is (0, a). So, in this example, we can see that the yintercept is at (0,18) making a = 18. ANS: a = 18
The common factor (or "multiplier") is 3 in this table, so the b value is 3.
ANS: b = 3
Equation: f (x) = 18•(3)^{x}

This is not the correct equation!
f (5) = 18•(3)^{5} = 4374 ≠ 54

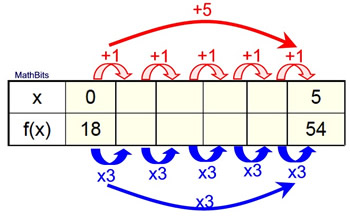

So, what went wrong? The problem is that our formula, f (x) = ab^{x}, assumes that the increment on x will be +1. So, when it sees +5 to the right of 0, it assumes that it is the fifth increment to the right of zero, and not the first increment to the right of zero. The common factor is then applied 5 times, instead of only once, and we get an answer of 4374 instead of 54.

How can we "fix" this problem? We need our formula to understand that an increment of +5 is the first location to the right of zero. The formula is making the increment 5 times larger than it needs to be. Since x represents the increments, we need to divide x by 5 to obtain an accurate equation.
Equation: f (x) = 18•(3)^{x/}^{5}
Our original formula needs to be amended for this new situation. →

where c = the
xincrement value



Is there an easier way to deal with increments not equal to +1 ?
Example 2 AGAIN:
The table at the right shows values from an exponential function.
Find the values of a and b, and express an equation that may be represented by this table.
With use of the graphing calculator, the difficulty level will be lowered to MODERATE.


Solution: We will be using the graphing calculator's ability to prepare an exponential regression equation to find the solution to this problem. Under these conditions, we will be obtaining the actual equation (and not an approximation, or best fit, for the equation).
Note r^{2} = 1 and r = 1 telling us we hit ALL of the points for an actual equation.
Enter the four points into
L1 and L2 under STAT

From STAT → CALC
choose 0:ExpReg

Use the lists where you stored the points. Fill in Y1 for the graph.


a = 18 and b = 1.24573094
Equation: f (x) = 18•(1.24573094)^{x
}
But this doesn't match our previous answer, or does it?
Put those exponent skills to use!
It does match!


What do we do when no consistent xincrement is given ?
Example 3:
The table at the right shows values from an exponential function of the form
f (x) = ab^{x}. Find the values of a and b, and express an equation that may be represented by this table.
This example would be labeled MODERATE difficulty,

Notice: No constant increment on x.
No constant multiplier on f (x).
Now, what do we do?
x
1
1
4
6
9
f(x)
0.75
3
24
96
768
We DO KNOW that this is an exponential function since the question says it is an exponential function.
Solution:

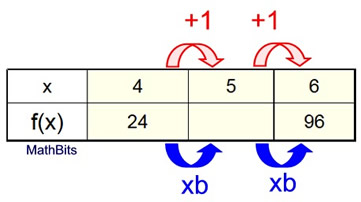

We need a new plan of attack on this problem since it is not immediately obvious what the common factor ("multiplier") may be. Choose 2 of the points that are closest to one another, such as x = 1 and x = 1, or x = 4 and x = 6. If the decimal bothers you, choose x = 4 and x = 6. Create a new section of the table filling in the missing increments between the two points you chose.

You can see that we represented the "multiplier" between each of the increments with "xb". Now, algebraically, to get from f (x) = 24 to f (x) = 96 we have:
24 • b • b = 96 → 24b^{2} = 96 → b^{2} = 4 → b = 2
We now have: f (x) = a • 2^{x
}To get a, substitute one of the points, such as (4,24).
24 = a • 2^{4} = a • 16 → a = 24/16 = 1.5
Equation: f (x) = 1.5•(2)^{x}
Constructing Functions from TWO InputOutput PAIRS:


"Do two points always determine an exponential function?"
Assuming that we are speaking about an exponential function of the form f (x) = ab^{x}, the answer is "Yes, under certain conditions." The conditions are that (1) a ≠ 0 (because you would have a straight line), (2) that the xcoordinates not be the same (you wouldn't have a function) and (3) that the ycoordinates of the points be nonzero with the same signs (remember the asymptotic nature of the graphs of these exponential functions  always all above, or all below, the xaxis).
So, how do we change two points into an exponential function?
Constructing functions given only two inputoutput pairs (or ordered pairs) can be accomplished in a variety of ways. The choice of solution method will depend upon the nature of the given pairs. For example, if you are given the yintercept as one pair, the solution will be fast and easy. If, on the other hand, you are given two generic pairs, perhaps containing decimals, you will need to do more work to find the solution. Let's take a look at some of the possibilities.
Example 1: (easy) Find an exponential function of the form f(x) = ab^{x} given the facts that f(0) = 12 and f(5) = 2916.
Solution:
f (0) = 12 → (0,12)
f (5) = 2916 → (5, 2916)
Find a: The yintercept is 12, so a = 12.
We now have f (x) = 12•b^{x}
Find b: Substitute:
2916 = 12•b^{5}^{
}243 = b^{5}
b = 3
Equation: f (x) = 12•(3)^{x} (you can Check this answer by plugging in the two points.)
Example 2: (moderate) Given the graph shown at the right, find an exponential function to represent this graph.

Solution: Points (1,4) and (1,1).
Since neither of these points is the yintercept, and the yintercept cannot be read from the graph, a system of equations will be needed to solve this problem.
f (x) = ab^{x} (remember b > 0 and b≠1)
The substitution method shown below is ONE method of solution.
Substitute the points into the formula:
(1,4) → f (1) = ab^{1} = 4
(1,1) → f (1) = ab^{1} = 1

Solve first equation for a:

Plug a into second equation :

Equation: f (x) = 2•(½)^{x} (you can Check this answer by plugging in the two points.)
Example 3: (harder) Find an exponential function of the form f(x) = ab^{x} which will pass through the points (1,30) and (3,187.5).
This problem will also require a system of equations. But, this time, we will be using an elimination method to solve, instead of the substitution method shown in Example 2.
Solution:
Substitute the points into the formula:
(1, 30) → f (1) = ab^{1} = 30
(3,187.5) → f (3) = ab^{3} = 187.5
Divide the two equations:
This will be easier if you start with the larger exponent on top.

Plug in to find a:

Equation: f (x) = 12•(2.5)^{x} (you can Check this answer by plugging in the two points.)
Example 4 AGAIN: (easier) Find an exponential function of the form f(x) = ab^{x} which will pass through the points (3,256) and (2, ¼). Round to nearest hundredths if needed.
We will solve this again, using the exponential regression capabilities of the graphing calculator.
Solution:
Enter the two points into L1 and L2 under STAT

From STAT → CALC choose 0:ExpReg

Be sure your lists match where you stored the points. Fill in Y1 if you want to see the graph.


a = 4
b = .25
Equation: f (x) = 4•(0.25)^{x}
Aren't calculators wonderful!!
