Bar graphs and histograms are used to compare the sizes of different group/categories.
Bar graphs display categorical data, while histograms display quantitative (numerical) data.

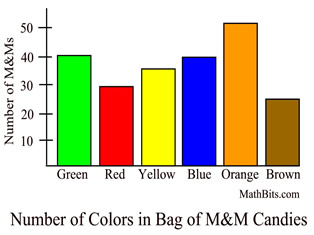

Bar Graph (Chart) bargraph

General Characteristics:
• Column label is categorical variable (colors).
• Column height is size of the group.
• Columns separated by space.

Since this data is categorical, the only possible calculation is finding the mode.

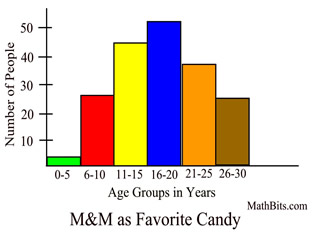

Frequency Histogram histocolor2
General Characteristics:
• Column label is quantitative variable (ages).
• Column label is a range of values
(or single value).
• Column height is size of the group (frequency).
• Columns NOT separated by space.
• Calculate mean, median, quartiles, standard deviation, and so on.

Note: The overall shape of a histogram will vary when the width of the intervals (also referred to as "bins") is changed. It is important when working with your graphing calculator to be aware of the width size of your intervals, and how to control them. See the link at the bottom of this page for help with graphing histograms on your graphing calculator.

The smaller the "bin" size, the more detailed the view of the distribution.

bullet Histograms versus Bar Graphs:

Generally speaking ...
1. Histograms are used to show distributions of variables, while bar graphs are used to compare variables.
2. Histograms plot quantitative (numerical) data with ranges of the data grouped into intervals, while bar graphs plot categorical data.
3. The bars in a bar graph can be rearranged, but it does not make sense to rearrange the bars in a histogram.
4. It is possible to speak of the skewness of a histogram, but not of a bar graph.
5. Bar graphs have space between the columns, while histograms do not.


dividerdash


bullet Frequency Histograms:

Histograms are generally constructed from frequency tables, thus the name "frequency histogram." The intervals from the table generally appear on the x-axis and the frequency values appear on the y-axis. The frequencies are represented by the height of each column located directly over the corresponding interval. There is no space between the columns. If an interval's count is zero, however, a space (or gap) will appear since the column has a height of zero.

Data set: {9, 25, 30, 31, 34, 36, 37, 42, 45, 47, 49, 43, 55, 58, 61, 63, 67}

Frequency Table
Interval
Count (frequency)
0-10
1
11-20
0
21-30
1
31-40
5
41-50
5
51-60
2
61-70
3
histoF

The intervals appear on the horizontal axis. The count (frequency) appears on the vertical axis.



bullet Cumulative Frequency Histograms:

The term "cumulative frequency" refers to the running total of the frequencies.  Each interval now contains a frequency number which represents that specific interval's count added to the sum of all the previous intervals' counts.  A cumulative frequency histogram will always contain column bars that get increasingly taller (or stay the same height) as you move to the right.

Data set: {9, 25, 30, 31, 34, 36, 37, 42, 45, 47, 49, 43, 55, 58, 61, 63, 67}

Cumulative Frequency Table
Interval
Count (frequency)
Cumulative
frequency
0-10
1
1
11-20
0
1 + 0 = 1
21-30
1
1 + 1 = 2
31-40
5
2 + 5 = 7
41-50
5
7 + 5 = 12
51-60
2
12 + 2 = 14
61-70
3
14 + 3 = 17

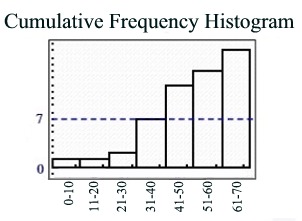

histoF

Notice that the columns increase in height, or stay the same, as you move to the right.



bullet Relative Frequency Histograms:

While the term "frequency" refers to the number of observations (or counts) of a given piece of data, the term "relative frequency" refers to the number of observations (or counts) expressed as a "part of the whole" or percentage. Each of the number of observations is divided by the total number of observations from the entire data set. In the data set we have been examining, there are 2 pieces of data in the interval "51-60", but there are 17 total pieces of data. The relative frequency of the 2 pieces of data in the interval "51-60" is 2/17 or 0.12 (to the nearest hundredth) or 12%. Notice that when you add all of the relative frequencies in the chart below, you get a value of one (or 100%). Relative frequency may be expressed as a fraction (ratio), a decimal, or a percentage.

Data set: {9, 25, 30, 31, 34, 36, 37, 42, 45, 47, 49, 43, 55, 58, 61, 63, 67}

Relative Frequency Table
Interval
Count (frequency)
Relative
frequency
0-10
1
1/17 = 0.06
11-20
0
0/17 = 0
21-30
1
1/17 = 0.06
31-40
5
5/17 = 0.29
41-50
5
5/17 = 0.29
51-60
2
2/17 = 0.12
61-70
3
3/17 = 0.18

Total = 17
Total = 1

Relative Frequency Histogram
relativefrequency

The intervals appear on the horizontal axis. The relative frequency (as a percentage in decimal form) appears on the vertical axis.
The graph is the same shape as the "frequency" histogram, but with a different y-scale.



dividerdash


Scaling a Histogram:
When graphing histograms, if the first x-scale interval does not start at zero, a "break" symbol may be drawn to show a gap in the scale.
Or a histogram may display a separated x-scale to avoid confusion with the vertical axis.
broken
separated




reminder

Histograms:
Pros and Cons
A histogram emphasizes the distribution of values. Histograms clearly show the shape of the data. It can be seen where the peaks of the distribution occur, and whether the distribution is skewed or symmetric. In addition, values occurring with high frequency are easy can be identified.
With histograms, however, the center and spread are harder to identify, exact values cannot be read due to the grouping of the data, and it is difficult to compare two data sets.


Working with Histograms
on Calculator:
ti84c
For calculator help with histograms
click here.
Working with Frequency
Tables
on Calculator:
ti84c
For calculator help with frequency tables
click here.
Working with Cumulative Frequency Histograms:
ti84c
For calculator help with cumulative histograms
click here.



divider
