refresher

Let's take a look at some needed vocabulary, before we begin.
sherlock
mean
(the average) - the sum of all data values divided by the number of the data values.
deviation
- the difference between a data value in a set and the mean of the set.
- the mean (average) of all deviations in a set equals zero.
absolute value
- the distance (a positive quantity) of any value on a number line from zero.
- the sum of the absolute values of deviations on each side of the mean are equal.
variability
- refers to how spread out (or clustered together) the values are in a data set.
- high variablity means the data is spread out.
- low variability means the data is clustered together (close together).

definition
The Mean Absolute Deviation (MAD) of a set of data is the average distance between each data value and the mean.

The mean absolute deviation is the "average" of the "positive distances" of each point from the mean.

The larger the MAD, the greater variability there is in the data (the data is more spread out).

The MAD helps determine whether the set's mean is a useful indicator of the values within the set.
The larger the MAD, the less relevant is the mean as an indicator of the values within the set.


Let's compare Sherlock's data set with that belonging to Watson
to see what the Mean Absolute Deviation (MAD) tells us.
Sherlock's Data Set:
{92, 83, 88, 94, 91, 85, 89, 90}
Watson's Data Set:
{94, 85, 86, 93, 5, 88, 91, 90}
Find the mean.mathmath1a
Find the mean.
madmtah2
Find the difference between each data value and the mean.
92 - 89 = 3
83 - 89 = -6
88 - 89 = -1
94 - 89 = 5
91 - 89 = 2
85 - 89 = -4
89 - 89 = 0
90 - 89 = 1
Notice: If you add the positive differences to the negative differences, you get zero. This should always be the case.
3+5+2+0+1=11
-6+(-1)+(-4)=-11
11+(-11) = 0
This also shows that the absolute values of the sums of the differences on either side of the mean are equal.
Find the difference between each data value and the mean.
94 - 79 = 15
85 - 79 = 6
86 - 79 = 7
93 - 79 = 14
5 - 79 = -74
88 - 79 = 9
91 - 79 = 12
90 - 79 = 11
Just like in Sherlock's data, the sum of the positive differences and the negative differences is zero.

15+6+7+14+9+12+11 = 74
-74 = -74
74 + (-74) = 0

Take the absolute value of all of the differences: 3, 6, 1, 5, 2, 4, 0, 1
Take the absolute value of all of the differences: 15, 6, 7, 14, 74, 9, 12, 11
Find the average (mean) of these absolute values:
madmath3
Find the average (mean) of these absolute values:
madmath4
Conclusion: The average distance between each data value and the mean is 2.875.

Since the MAD is "small", it implies that the mean of 89 is indicative of the other values within the data set.

83, 85, 88, 89, 90, 91, 92, 94 [mean = 89]

If you were to guess the average grade of this set to be 89, you would have a score which is a reliable indicator of the other scores in this set. The fact that the MAD is small also means that data in the set are close together (clustered).

Conclusion: The average distance between each data value and the mean is 18.5.

Since the MAD is "large", it implies that the mean of 79 is not a reliable indicator of the other values within the data set.

5, 85, 86, 88, 90, 91, 93, 94 [mean = 79]

If you were to guess the average grade of this set to be 79, you would not have a score which is a reliable indicator of the other scores in this set. The mean in this set is being affected by the outlier score of 5. The large MAD value tells you that the data is widely scattered because of the outlier.

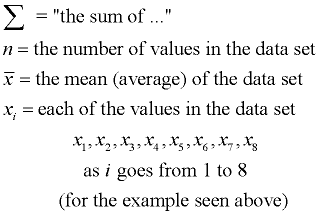

In summation notation:
madmath5

which is the same as:
madmath7
madmath6

dividerdash



ti84c
For calculator help with
MAD
click here.
